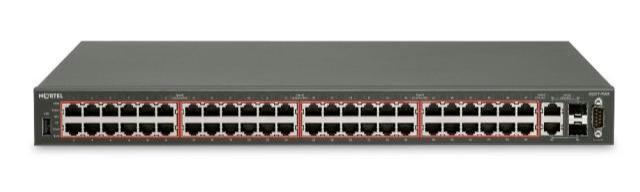

How to configure a Nortel/Avaya 4550T-PWR switch – Part 2/2

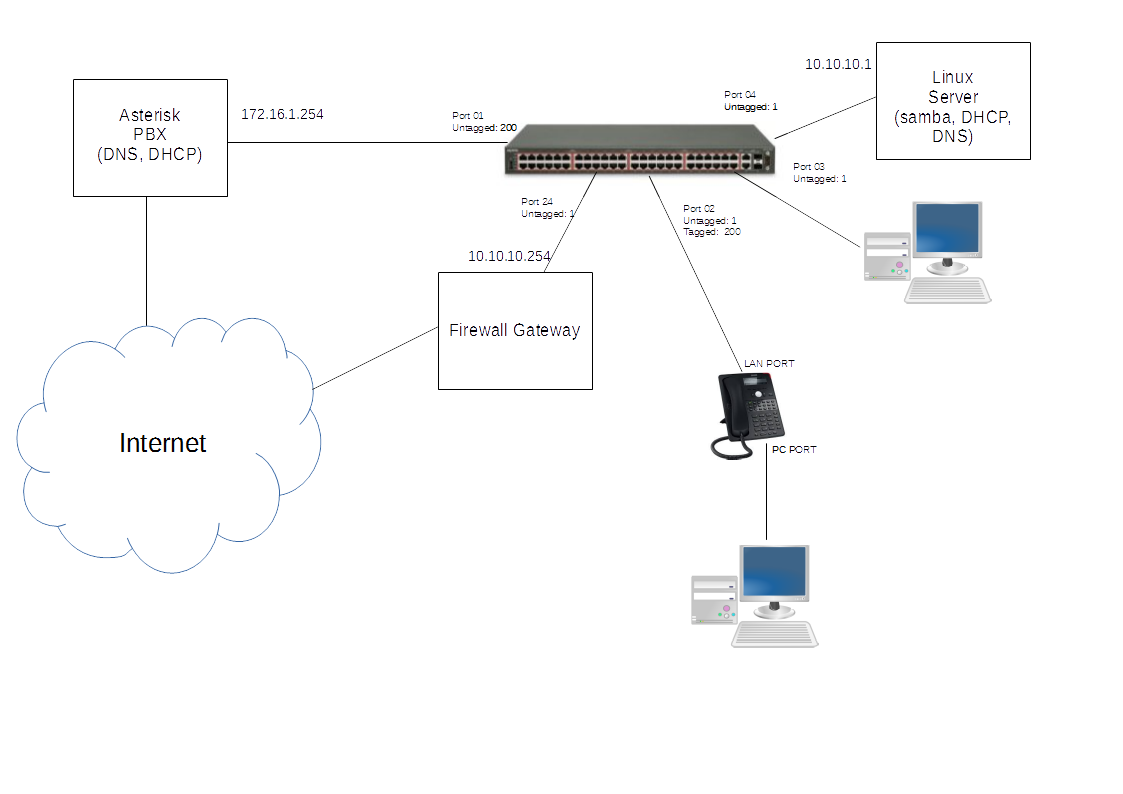

NewtworkSchemaIn this part I’ll show the configuration steps to obtain the situation in this network schema. This is a really simple and real situation: a simple network using two separated VLAN one for Data and the other for Voip.

Att.: In this example for to keep everything simple, clear and practical we’ll use Asterisk PBX and Snom IP Phone, but the same considerations apply to other brands.

Att.: Generally it’s important that we separate the voip traffic from the data traffic so we’ll utilize two different VLANs: one VLAN will carry the data traffic destined to the desktop and server and the other will carry only the Voip/voice traffic. Continue reading
