Configuring Asterisk for Skype Connect

Old Italian Phone

Old Italian Phone device

This post is intended to provide some basic guidance in configuring Skype Connect SIP Channels with Asterisk/Freepbx using SIP Trunk.

-- General Settings --
Outbound Caller ID: 99051000xxxxxx <Skype Connect registration ID>
Maximum Channels: 1 <The number of channels you purchased from Skype>

Dialed Number Manipulation Rules
(0039) + <prefix = NULL> | 0Z.
(0039) + <prefix = NULL> | 3Z.

-- Outgoing Settings --

Trunk Name: SkypeConnect <This can be whatever you want>

PEER Details:
username=99051000xxxxxx ; This is your Skype Connect registration ID
secret=xxxxxxxx ; This is your Skype Connect registration password
type=peer
qualify=yes
insecure=invite
host=sip.skype.com
fromdomain=sip.skype.com
disallow=all
allow=alaw&ulaw&g729
fromuser=99051000xxxxxx ; This is your Skype Connect registration ID

-- Registration --
Registration String: 99051000xxxxxx:<password>@sip.skype.com/99051000xxxxxx

Continue reading

Configure a LinkSys SPA942 with Asterisk 1.8

In this post I will show you how to connect & configure one IpPhone Linksys SPA942 using an Asterisk Pbx 1.8: I hope this can help you with other similar IpPhones (Linksys SPA942 is in “End-of-sale “)

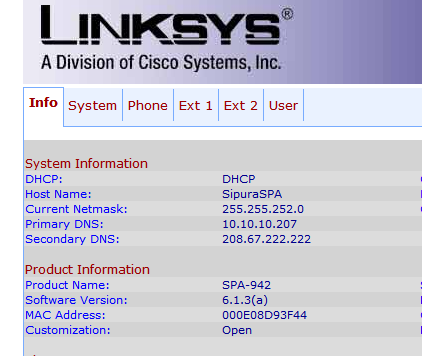

To start you have to verify the firmware version used by the phone: connect to the web interface on the IpPhone and check the info tab check.

LinkSys SPA942 - Firmware version
Continue reading

Turn Pbx in a Flash 2.0.6.22 in RAID1 system

I have installed a brand new pbx (using Pbx in a flash), all works fine, but I want to turn the working setup in RAID1.

Att.: With the new releases of the PiaF setup is no longer possible to perform a RAID installation (option ks_sataraid), and in spite of the usefulness of the raid on a pbx is much discussed (see link to the Pbx in a flash forum below). I prefer always to use a RAID1 in “important” installation and when the pbx will be used like file server too. And when it is not possible to use a RAID controller, I use Linux software RAID (it is, however, better than nothing !).

I found the how-to “How To Create A RAID1 Setup On An Existing CentOS/RedHat 6.0 System“ in how to forge (see link below), and in this tutorial I adapted it for our purposes.
