Fax & Voip – Part 2/3 – From Vad to Clock……

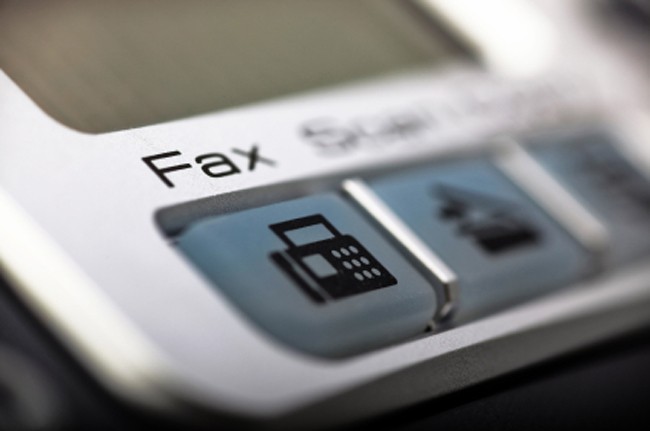

fax-machineCodec Translation
I have already mentioned before. In the path caller->called codecs can change several times, and every transformation can introduce distortion and delay.

To minimize fax issues all the legs involved must be using the same codec to avoid codec translation. It is really important the kind of codec: you must use in all the path alaw or ulaw ! Continue reading

Fax & Voip – Part 1/3 – All about codec in Fax transmission

faxmachinemurderCertainly there are huge benefits in adopting VoIP technology (i.e. Asterisk PBX), and certainly there will be many people who will be wise to use Voip PBX trunk instead of traditional phone lines.

But using Voip PBX you may start to notice that faxing just doesn’t seem to work as well as you remember it working on the old analog phone line.

Definitely: faxes work so well in the VoIP PBX/line as the old analogue line/Analog Pbx ?
The answer is: usually no !

Faxes in Voip env do not work as well as you in “old” phone line. FAX was designed for analog networks, and can not travel easly over a digital VoIP network.

The reasons are many: starting from the codec used by VoIP that are designed to compress voice and save bandwidth, and that corrupts the signals used by modems/fax, until the fact that the signal is transformed several times in the path caller-called, and Pbx Voip add more transformation point making more difficult transmit/receive fax.

Remember: it is very important understand that each transformation step introduces some distortion to the signal, imperceptible to the voice but not for the fax: and for faxes it is very important the signal quality !

In this series I’ll try to suggest some tips to increase the fax quality in Voip env.
Continue reading

Strange issue with Sonicwall TZ 100/Asterisk 1.8 and a famous VOIP ISP

I want to tell a very strange issue occoured some weeks ago using pbx Asterisk 1.8, an router/firewall Sonicwall TZ 100 and a famous Voip ISP.

The system has always worked fine until a couple of weeks ago (pls see in linkografia for config used in Sonicwall TZ100).

Without any warning one day calls began to be randomly “one way”: the caller can hear but the called cannot. Briefly here is what we have verified togheter with the Voip ISP customer care.

Asterik & SonicWall & Voip ISP
Continue reading

From SIP to RTP (Part 6) – The phone is ringing….

Real Case: Asterisk receive an external call
A call from an external number to our pbx using a SIP trunk.
Att: I have “sniffed” that traffic using tcpdump.

tcpdump -i <interface> -s 65535 -w <file name>

In the next the Asterisk pbx is inside a LAN network, and its ip address is 10.10.10.110. The router in the network is configured with a public ip address 79.14.212.52. Asterisk is configured correctly using local network & public network parameters: in this mode all the message in SIP will be correctly valuated.

File sip.conf

[general]
externip = 79.14.212.52
localnet=10.10.10.0/255.255.255.0

>>Message from ISTP provider (IP 212.97.59.76) to Pbx (ip: 10.10.10.110)

INVITE sip:5224851@79.14.212.52 SIP/2.0
Record-Route: <sip:212.97.59.76:5061;lr=on;ftag=as16df4853;rpp=np>
Via: SIP/2.0/UDP 212.97.59.76:5061;branch=z9hG4bKc7f1.f1fb7516.1
Via: SIP/2.0/UDP 212.97.59.85:5060;branch=z9hG4bK683ee34f;rport=5060
From: "+393461050897" <sip:+393461050897@sip.messagenet.it>;tag=as16df4853
To: <sip:01042064023@212.97.59.76:5061>
Contact: <sip:+393461050897@212.97.59.85>
Call-ID: 509017dd3847bf900f839d877abfd752@sip.messagenet.it
CSeq: 102 INVITE
User-Agent: foxtrot
Max-Forwards: 69
Date: Tue, 29 Nov 2011 00:29:39 GMT
Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO
Supported: replaces
Content-Type: application/sdp
Content-Length: 356
v=0
o=root 21598 21598 IN IP4 193.227.104.40
s=session
c=IN IP4 193.227.104.40
t=0 0
m=audio 35936 RTP/AVP 18 3 97 8 0 101
a=rtpmap:18 G729/8000
a=fmtp:18 annexb=no
a=rtpmap:3 GSM/8000
a=rtpmap:97 iLBC/8000
a=fmtp:97 mode=30
a=rtpmap:8 PCMA/8000
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=ptime:20
a=sendrecv

The trace show an incoming call from number +393461050897 to our number (trunk with ITSP) that is 01042064023.

Att.: 5224851 is another internal number assigned from ITSP to the trunk that is linked to 01042064023: very commonly the ITSP use this “internal number” for REGISTER & OPTIONS messages.

Att.: The ITSP know where is located the our pbx because Asterisk send periodically a REGISTER & OPTIONS messages: the NAT is “opened” by this kind of messages.

The ITSP wants to receive the voice streaming to 193.227.104.40 port 35936.

Att: Very interesting the UA that receive the voice stream is different from the UA that establish the call (different ip address): it is very common using big ITSP.

>> Messages from PBX (ip 10.10.10.110) to ISTP provider (IP 212.97.59.76).

SIP/2.0 100 Trying
Via: SIP/2.0/UDP 212.97.59.76:5061;branch=z9hG4bKc7f1.f1fb7516.1;received=212.97.59.76
Via: SIP/2.0/UDP 212.97.59.85:5060;branch=z9hG4bK683ee34f;rport=5060
Record-Route: <sip:212.97.59.76:5061;lr=on;ftag=as16df4853;rpp=np>
From: "+393461050897" <sip:+393461050897@sip.messagenet.it>;tag=as16df4853
To: <sip:01042064023@212.97.59.76:5061>
Call-ID: 509017dd3847bf900f839d877abfd752@sip.messagenet.it
CSeq: 102 INVITE
User-Agent: FPBX-2.8.1(1.4.40)
Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO
Supported: replaces
Contact: <sip:5224851@79.14.212.52>
Content-Length: 0

>> Messages from PBX (ip 10.10.10.110) to ISTP provider (IP 212.97.59.76).

SIP/2.0 200 OK
Via: SIP/2.0/UDP 212.97.59.76:5061;branch=z9hG4bKc7f1.f1fb7516.1;received=212.97.59.76
Via: SIP/2.0/UDP 212.97.59.85:5060;branch=z9hG4bK683ee34f;rport=5060
Record-Route: <sip:212.97.59.76:5061;lr=on;ftag=as16df4853;rpp=np>
From: "+393461050897" <sip:+393461050897@sip.messagenet.it>;tag=as16df4853
To: <sip:01042064023@212.97.59.76:5061>;tag=as5dfb4137
Call-ID: 509017dd3847bf900f839d877abfd752@sip.messagenet.it
CSeq: 102 INVITE
User-Agent: FPBX-2.8.1(1.4.40)
Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO
Supported: replaces
Contact: <sip:5224851@79.14.212.52>
Content-Type: application/sdp
Content-Length: 238
v=0
o=root 2754 2754 IN IP4 79.14.212.52
s=session
c=IN IP4 79.14.212.52
t=0 0
m=audio 18480 RTP/AVP 8 101
a=rtpmap:8 PCMA/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=silenceSupp:off - - - -
a=ptime:20
a=sendrecv

>>Final ACK

ACK sip:5224851@79.14.212.52 SIP/2.0
Record-Route: <sip:212.97.59.76:5061;lr=on;ftag=as16df4853>
Via: SIP/2.0/UDP 212.97.59.76:5061;branch=0
Via: SIP/2.0/UDP 212.97.59.85:5060;branch=z9hG4bK0bbcf9cd;rport=5060
From: "+393461050897" <sip:+393461050897@sip.messagenet.it>;tag=as16df4853
To: <sip:01042064023@212.97.59.76:5061>;tag=as5dfb4137
Contact: <sip:+393461050897@212.97.59.85>
Call-ID: 509017dd3847bf900f839d877abfd752@sip.messagenet.it
CSeq: 102 ACK
User-Agent: foxtrot
Max-Forwards: 69
Content-Length: 0

Asterisk accepts the call and declare that want to receive voice stream to 79.14.212.52 port 18480.

Now start the voice streaming: in this figure this traffic “sniffed” and showed using wireshark.

PBX → ITSP
10.10.10.110 – src port 1840 → 193.227.104.40 dst port 35936

ITSP → PBX
193.227.104.40 src port 35936 → 10.10.10.110 – dst port 1840

We can see that Asterisk start to send packet: in this mode the NAT open the port correctly and the ITSP can reach the Asterisk PBX inside the LAN.

Another very interesting things is that tha ITSP UA use a different Ip Address for the SIP messages and for the RTP stream.

Antother Real Case: Interconnection Asterisk<->Avaya/Nortel BCM 450
In this case an external connected to an Avaya Pbx BCM450 call using SIP an Asterisk PBX.

Asterisk PBX – IP 10.10.10.110
Avaya PBX – IP 10.10.10.155
Extent connected to Avaya PBX that establish the call – IP 10.10.10.87

>> From Avaya to Asterisk

INVITE sip:420;phone-context=subscriber.private@10.10.10.110:5060;transport=udp;user=phone SIP/2.0
From: <sip:anonymous@anonymous.invalid>;tag=34e03fa8-a0a0a9b-13c4-55013-59a-5708f3a4-59a
To: <sip:420;phone-context=subscriber.private@10.10.10.110;user=phone>
Call-ID: 35036840-a0a0a9b-13c4-55013-59a-3609da9e-59a
CSeq: 1 INVITE
Via: SIP/2.0/UDP 10.10.10.155:5060;branch=z9hG4bK-59a-15e419-1faa1b5d
Max-Forwards: 70
Supported: sipvc,x-nortel-sipvc,100rel,replaces
User-Agent: Nortel Networks BCM VoIP Gateway release_46 version_46.46.0.33
P-Asserted-Identity: <sip:anonymous@10.10.10.155>
Privacy: id;user
x-nt-corr-id: 35036840-a0a0a9b-13c4-55013-59a-3609da9e-59a
Contact: <sip:anonymous@anonymous.invalid:5060;maddr=10.10.10.155;transport=udp>
Allow: INVITE,INFO,ACK,OPTIONS,CANCEL,BYE,NOTIFY,PRACK,UPDATE,REFER
Content-Type: application/sdp
Content-Length: 334
v=0
o=- 1323100317 1323100317 IN IP4 10.10.10.155
s=-
c=IN IP4 10.10.10.87
t=0 0
a=sqn:0
a=cdsc:1 image udptl t38
m=audio 51000 RTP/AVP 18 4 0 8 120 111
c=IN IP4 10.10.10.87
a=fmtp:18 annexb=yes
a=fmtp:4 annexa=yes
a=rtpmap:120 telephone-event/8000
a=fmtp:120 0-15
a=rtpmap:111 X-nt-inforeq/8000
a=ptime:30
a=sendrecv

Asterisk -> Avaya

SIP/2.0 100 Trying

Via: SIP/2.0/UDP 10.10.10.155:5060;branch=z9hG4bK-59a-15e419-1faa1b5d;received=10.10.10.155
From: <sip:anonymous@anonymous.invalid>;tag=34e03fa8-a0a0a9b-13c4-55013-59a-5708f3a4-59a
To: <sip:420;phone-context=subscriber.private@10.10.10.110;user=phone>
Call-ID: 35036840-a0a0a9b-13c4-55013-59a-3609da9e-59a
CSeq: 1 INVITE
User-Agent: FPBX-2.8.1(1.4.40)
Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO
Supported: replaces
Contact: <sip:420@10.10.10.110>
Content-Length: 0

From Asterisk to Avaya

SIP/2.0 200 OK
Via: SIP/2.0/UDP 10.10.10.155:5060;branch=z9hG4bK-59a-15e419-1faa1b5d;received=10.10.10.155
From: <sip:anonymous@anonymous.invalid>;tag=34e03fa8-a0a0a9b-13c4-55013-59a-5708f3a4-59a
To: <sip:420;phone-context=subscriber.private@10.10.10.110;user=phone>;tag=as5b7d8e50
Call-ID: 35036840-a0a0a9b-13c4-55013-59a-3609da9e-59a
CSeq: 1 INVITE
User-Agent: FPBX-2.8.1(1.4.40)
Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO
Supported: replaces
Contact: <sip:420@10.10.10.110>
Content-Type: application/sdp
Content-Length: 206
v=0
o=root 2756 2756 IN IP4 10.10.10.110
s=session
c=IN IP4 10.10.10.110
t=0 0
m=audio 16316 RTP/AVP 0 8
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=silenceSupp:off - - - -
a=ptime:20
a=sendrecv

It is possible to verify with this Sip packet that the BCM 450 does not behave like a B2BUA: the asterisk pbx & extent of Avaya/Nortel BCM 450 connect itself each other directly !

PREVIOUS POST: From Sip to RTP (Part 5) – Trunks & surroundings

Linkografia
http://www.ietf.org/rfc/rfc3325.txt
http://en.wikipedia.org/wiki/Session_Initiation_Protocol
